Ringcentral - OAuth Authentication

If you do not have a RingCentral Developers account, you can register for one here: https://developers.ringcentral.com/sign-up

Your account should have the Role “Developer Admin”.

Log in to your RingCentral Developers account

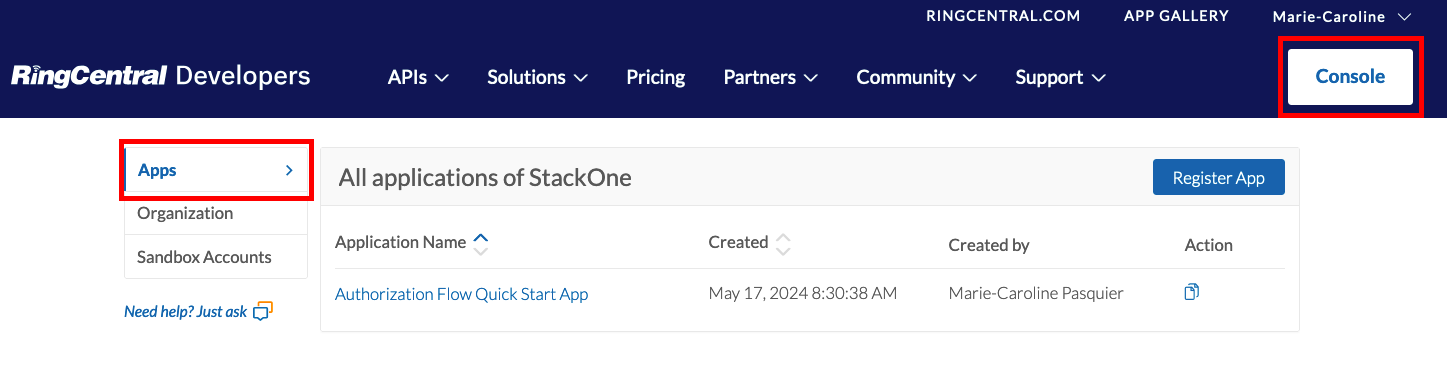

In Ringcentral Developers, click the Console button, then Apps on the left.

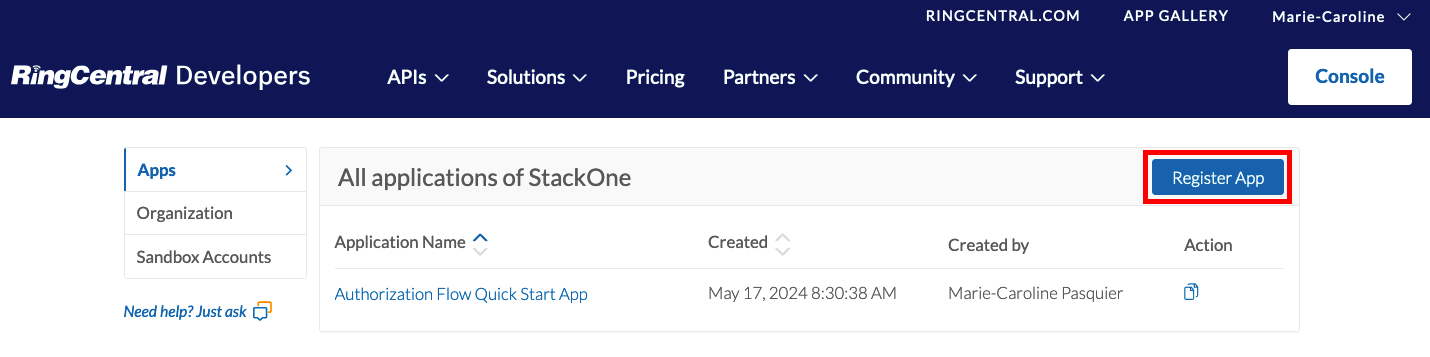

Click the Register App button.

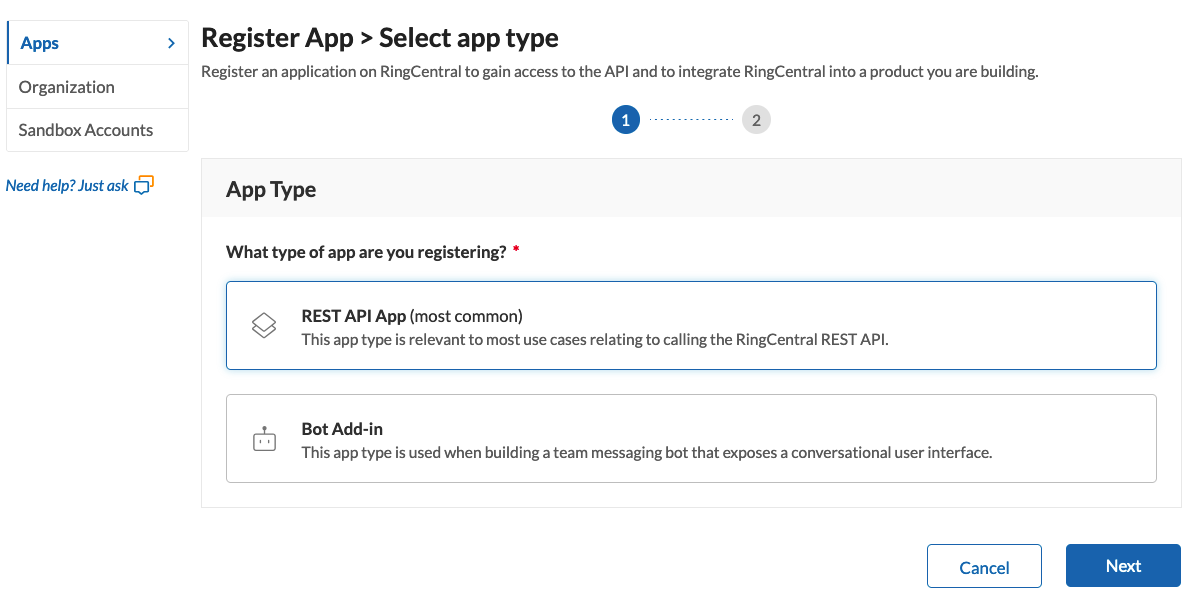

Under App Type, select “REST API App (most common)” and click the Next button.

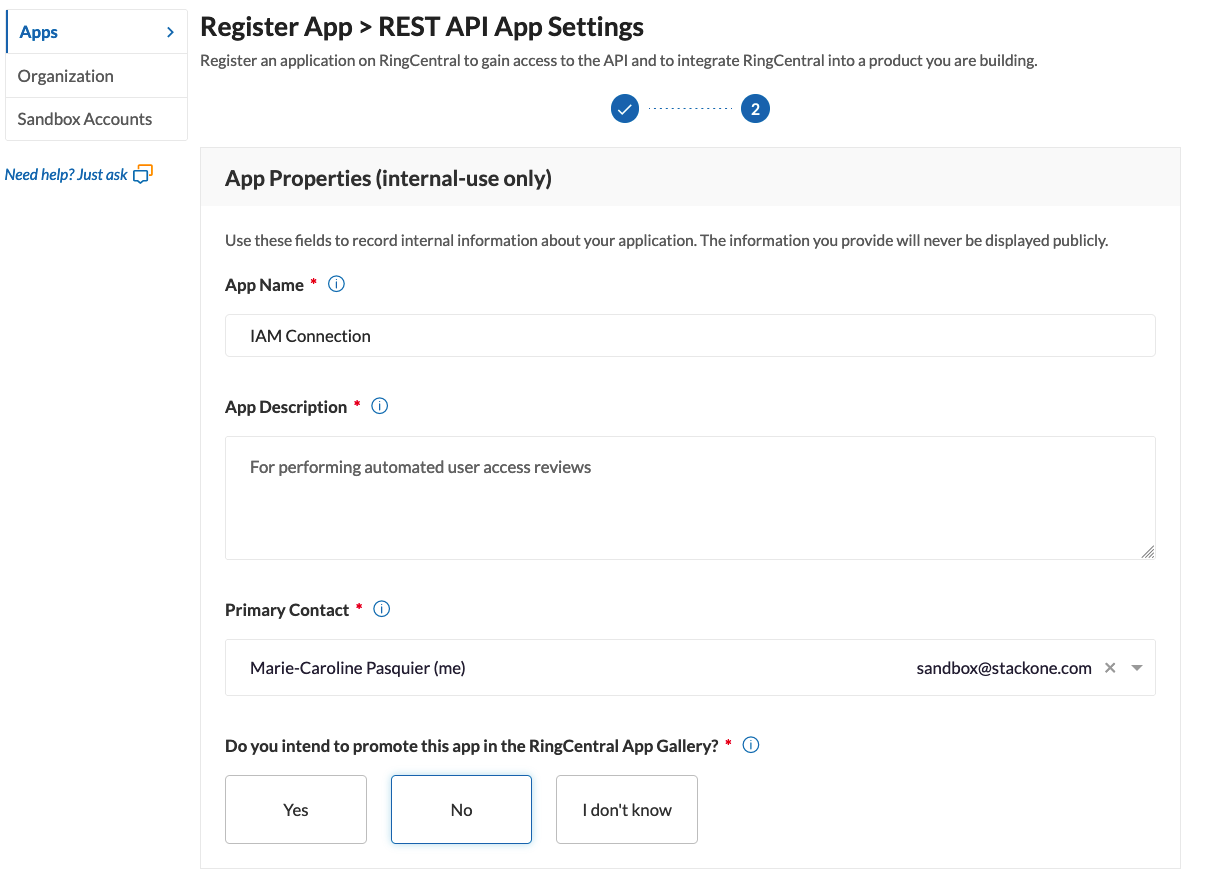

Under App Properties (internal-use only), enter the following details:

• App Name: Enter a name for your new App
• App description: Enter a description for your new App
• Primary Contact: Enter the email address of the main support contact for this App
• Do you intend to promote this app in the RingCentral App Gallery?: No

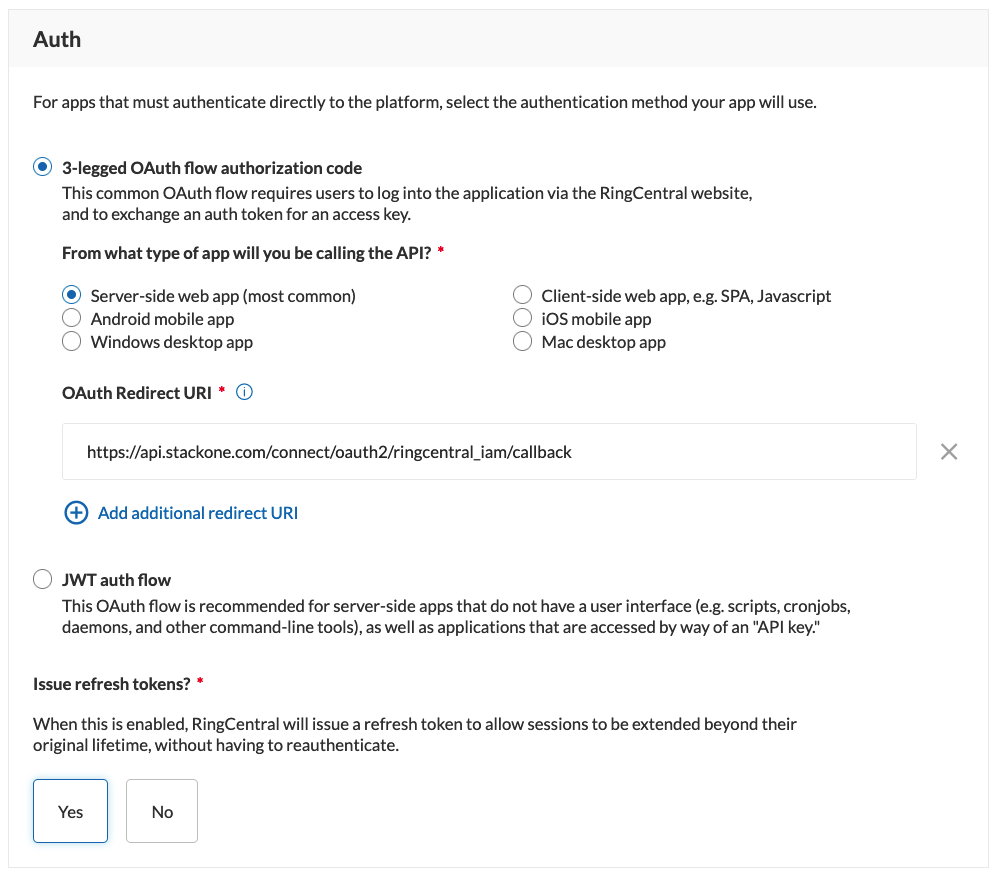

Scroll down to the Auth section, and enter the following details:

• 3-legged OAuth flow authorization code
• From what type of app will you be calling the API?: Server-side web app (most common)
• OAuth Redirect URI: https://api.stackone.com/connect/oauth2/ringcentral_iam/callback
• Issue refresh tokens? Yes

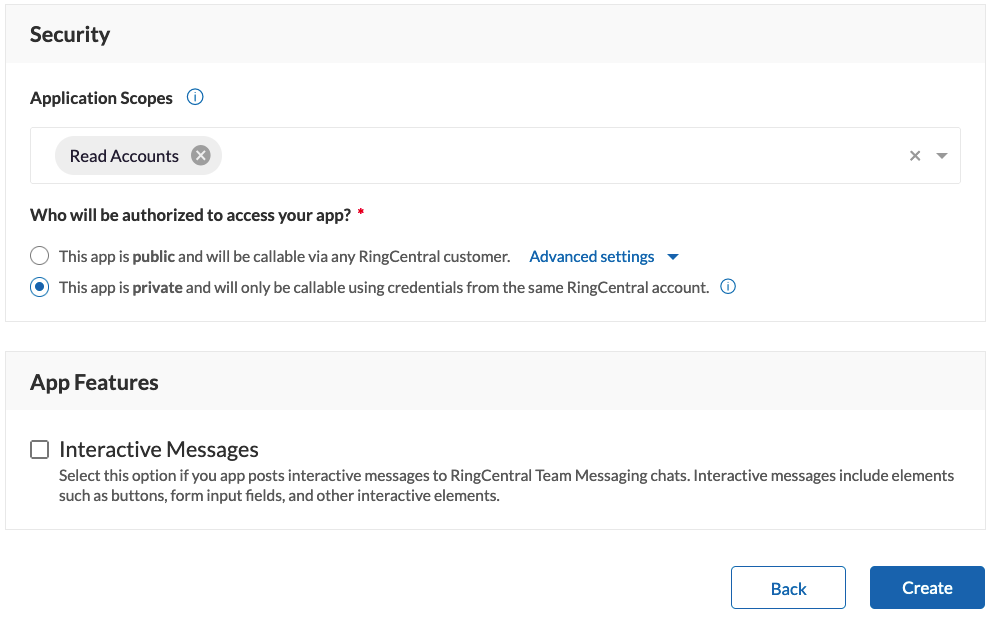

Under Security, select the following:

• Application Scopes: Read Accounts
• Who will be authorized to access your app? : This app is private and will only be callable using credentials from the same RingCentral account.

Click the Create button to proceed. Upon seeing a success message, press the OK button.

Your new App Client ID and Client Secret will now be available to copy.

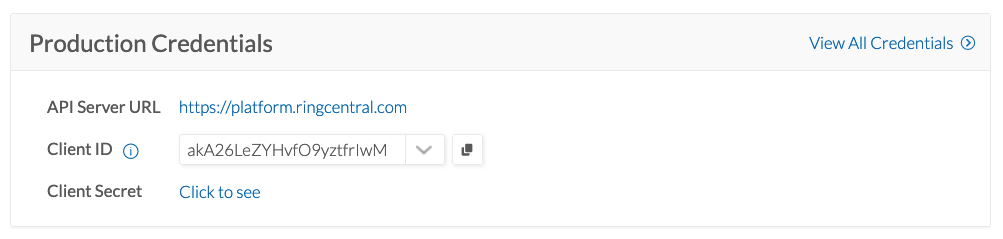

Under Production Credentials, copy both your Client ID and Client Secret and store them safely to use in the following steps.

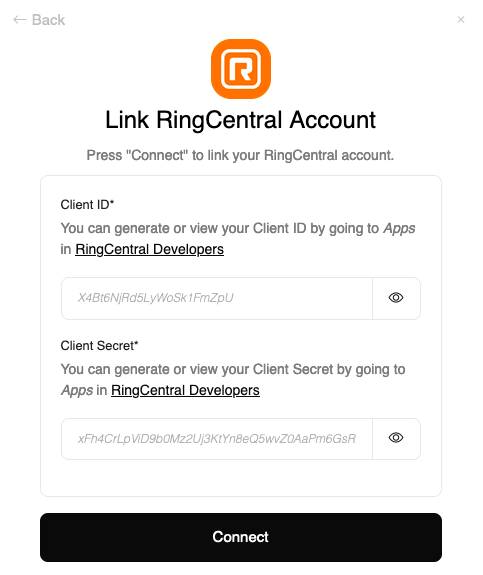

Upon reaching the Link Account page, enter the credentials from the previous steps:

• Client ID
• Client Secret

Proceed by clicking the Connect button.
