Box
Follow these steps to connect Box via the StackOne Hub successfully.
Ensure that your Box account has Admin privileges and has 2-Step Verification enabled in your Box Account Settings.
If you’ve been directed to StackOne to integrate with Box, the following steps will help you understand the process and any necessary actions to configure a successful integration.

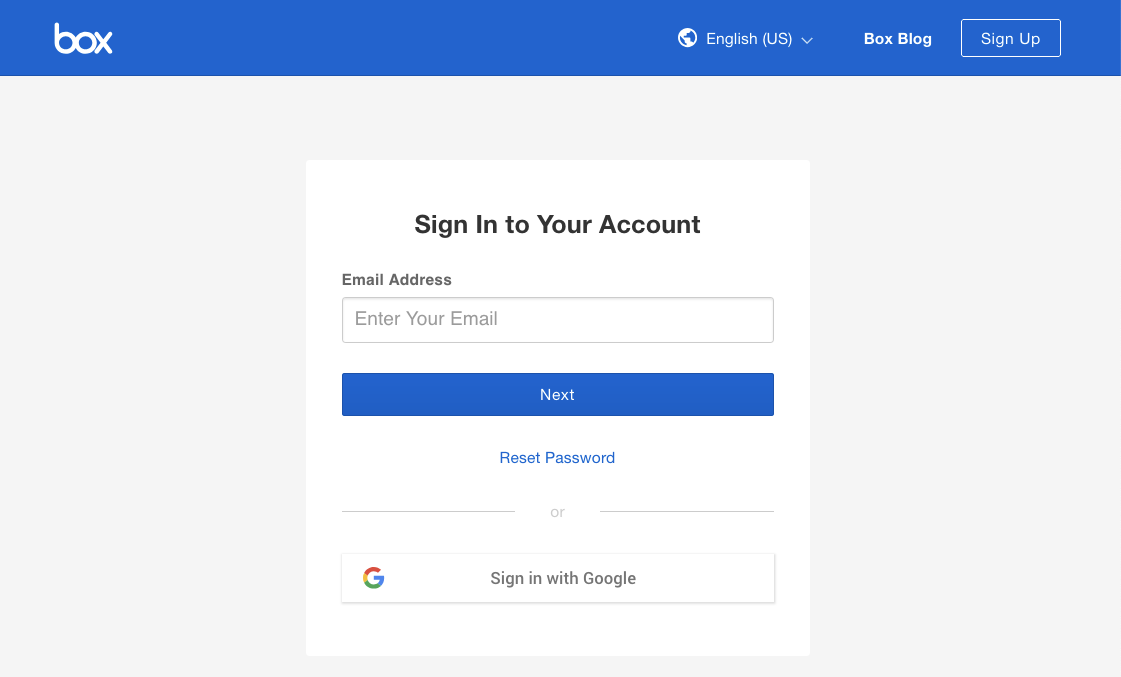

Log in to Box
Log in
Log in to your Box account.

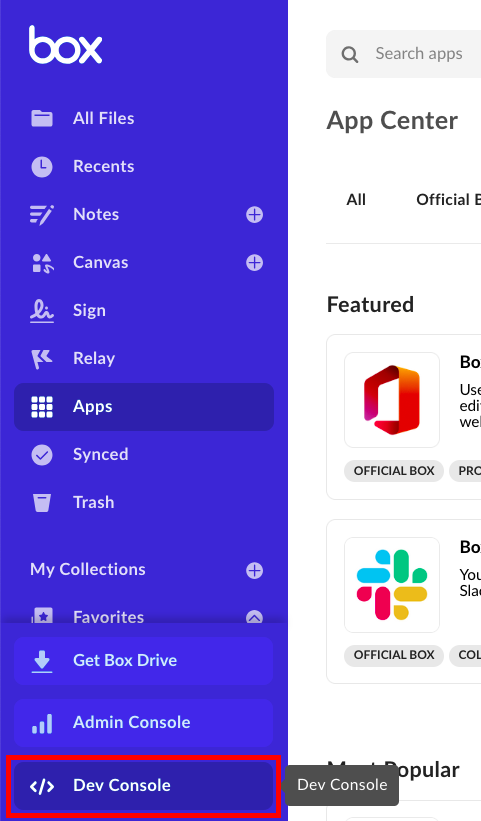

Go to the Dev Console
Click the Dev Console button in the bottom-left navigation to go to your Box Dev Console.
Create a New OAuth Application
This connection will authenticate on behalf of a registered Application in Box.

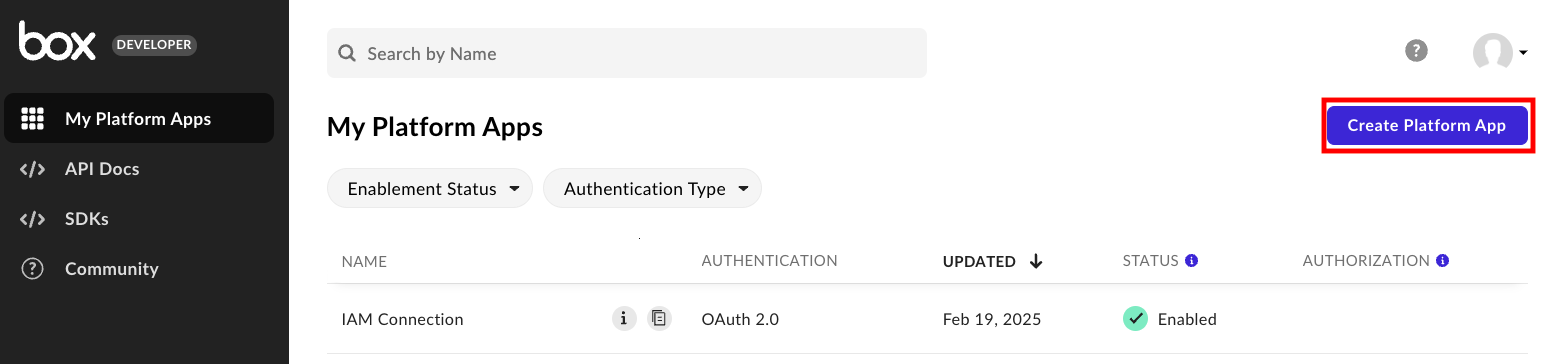

Create New Platform App
In the My Platform Apps page of the Dev Console, click the Create Platform App button in the top right.

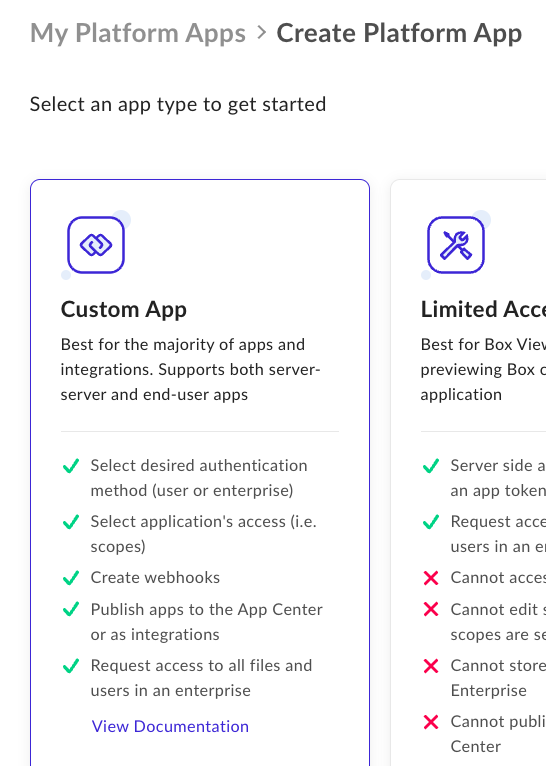

Select App Type
Under Create Platform App, select the Custom App option.

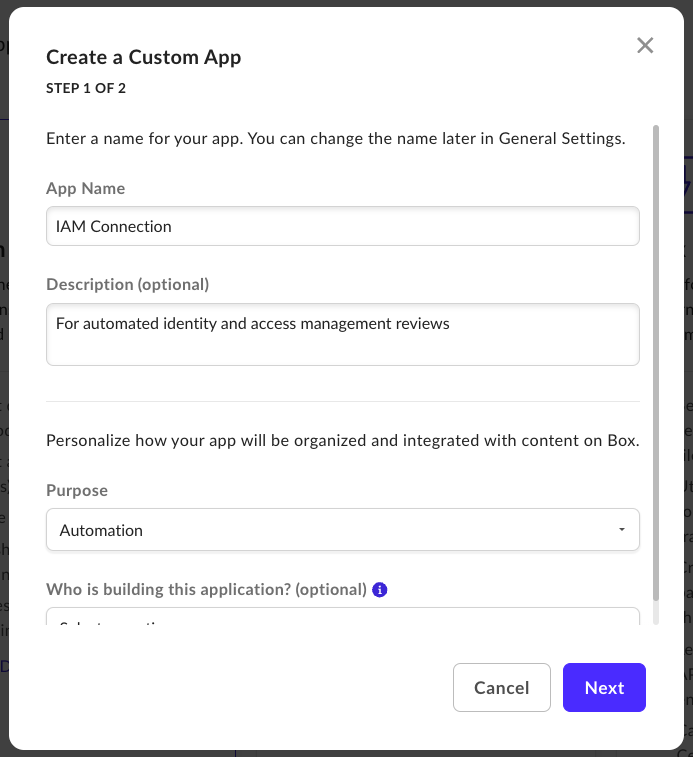

Enter App Details
Under Create a Custom App: Step 1 of 2, enter an App Name.
Select Automation under Purpose, then click the Next button to proceed.

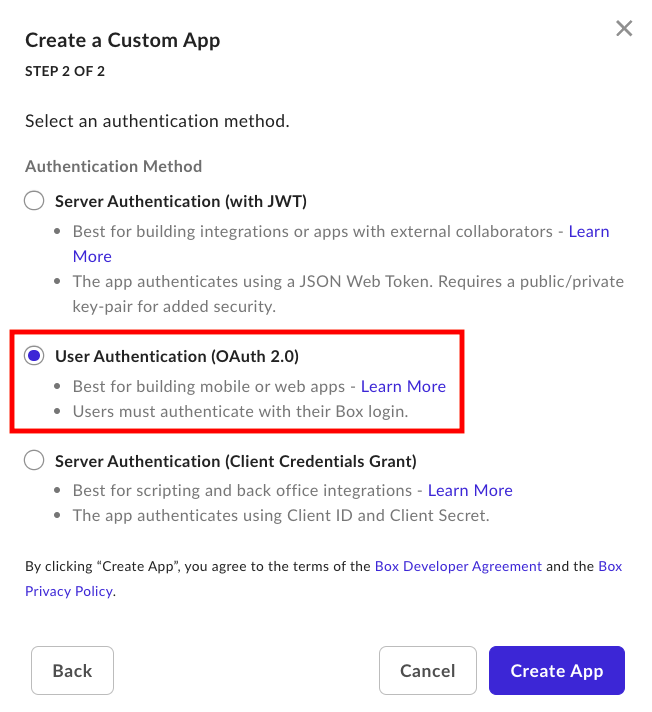

Select Authentication Method
Under Create a Custom App: Step 2 of 2, select User Authentication (OAuth 2.0).
Click the Create App button to proceed.

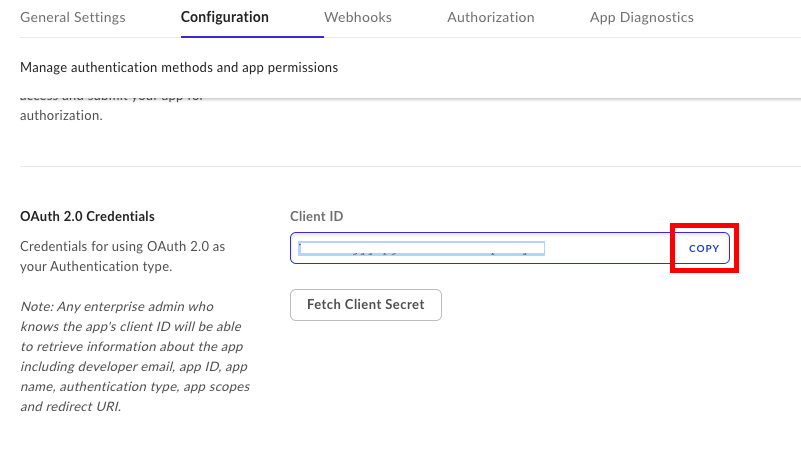

Copy Your New Client ID
Your new Application’s details will now be displayed.
Scroll down to the OAuth 2.0 Credentials section, and copy your Client ID and store it safely.

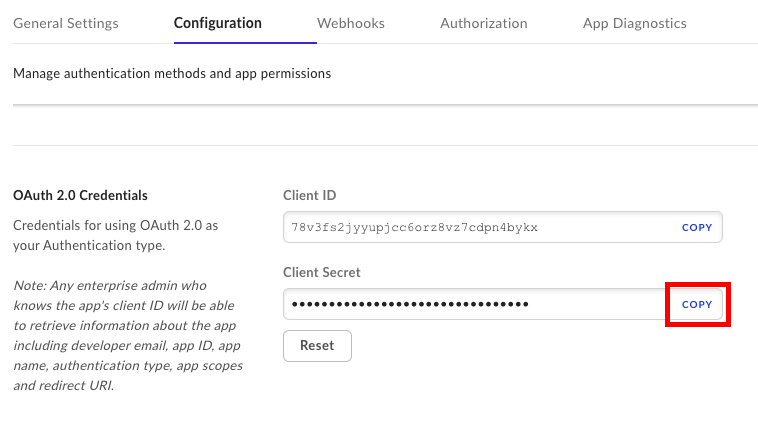

Copy Your New Client Secret
Click the Fetch Client Secret button. This may prompt you for your 2-Step Verification code.
Your Client Secret will now be displayed. Copy this and store it safely to be used in the next steps.

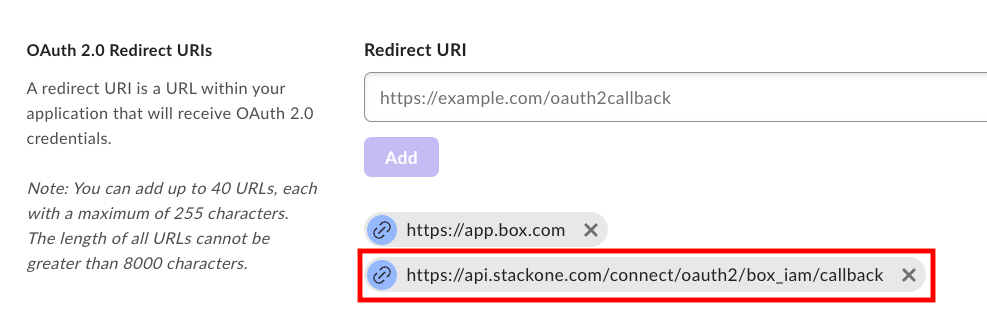

Add a Redirect URI
Scroll down to the Oauth 2.0 Redirect URIs section.
Enter the following Redirect URI: https://api.stackone.com/connect/oauth2/box_iam/callback
Then click the Add button.

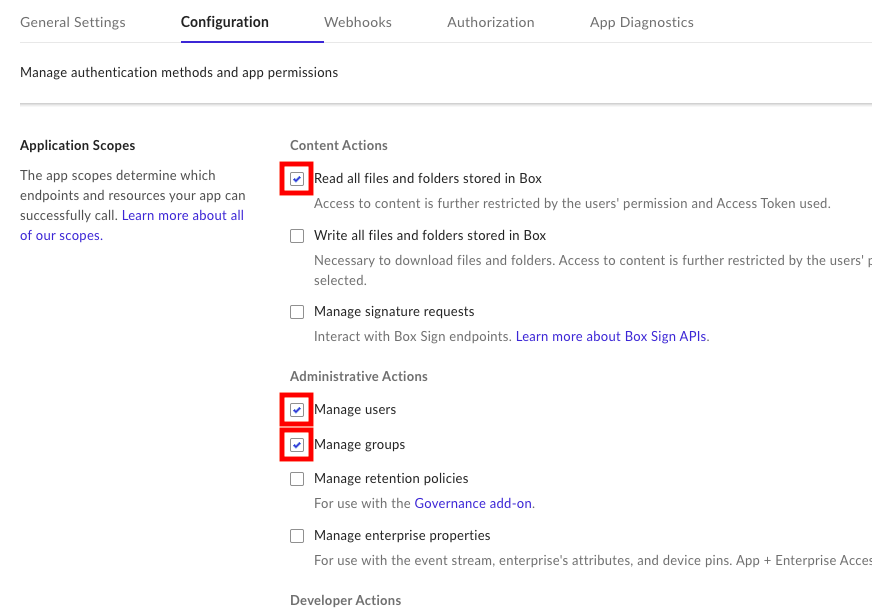

Select Application Scopes
Scroll down to the Application Scopes section.
Select the following scopes:
- Read all files and folders stored in Box
- Manage users
- Manage groups

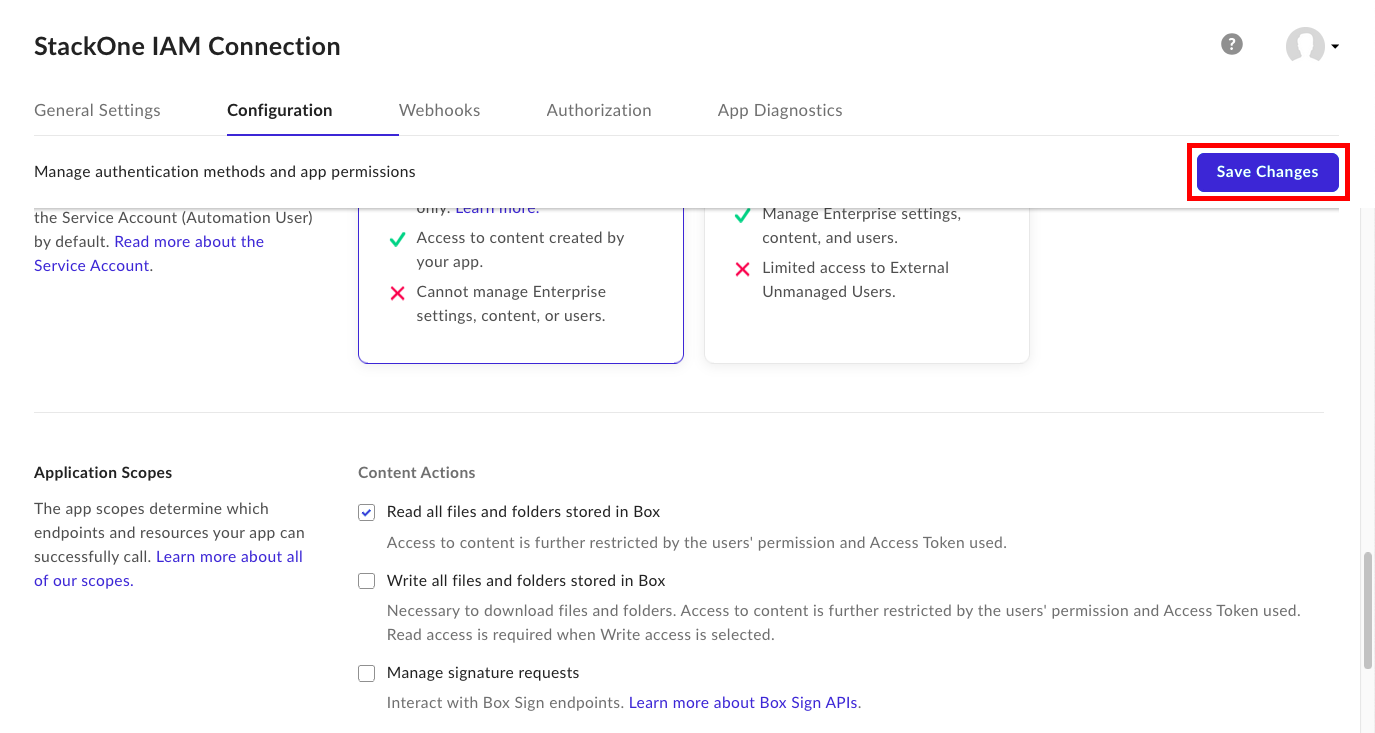

Save Your Application
When complete with the previous steps, click the Save Changes button in the top right.
Connecting with StackOne

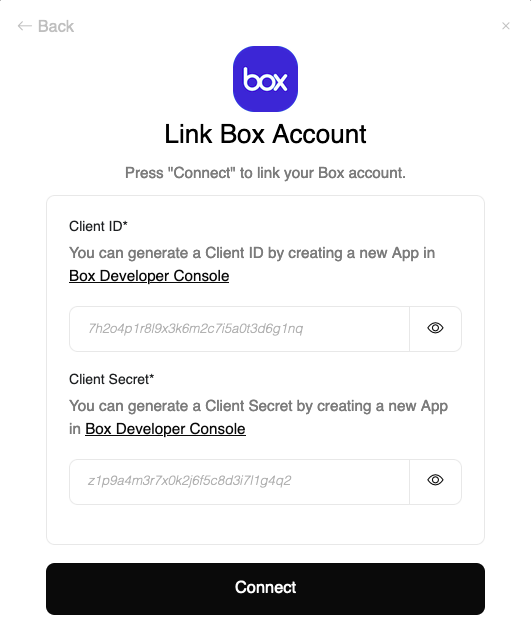

Enter Credentials
Upon reaching the Link Account page, enter your Client ID and Client Secret from the previous steps.
Proceed by clicking the Connect button.

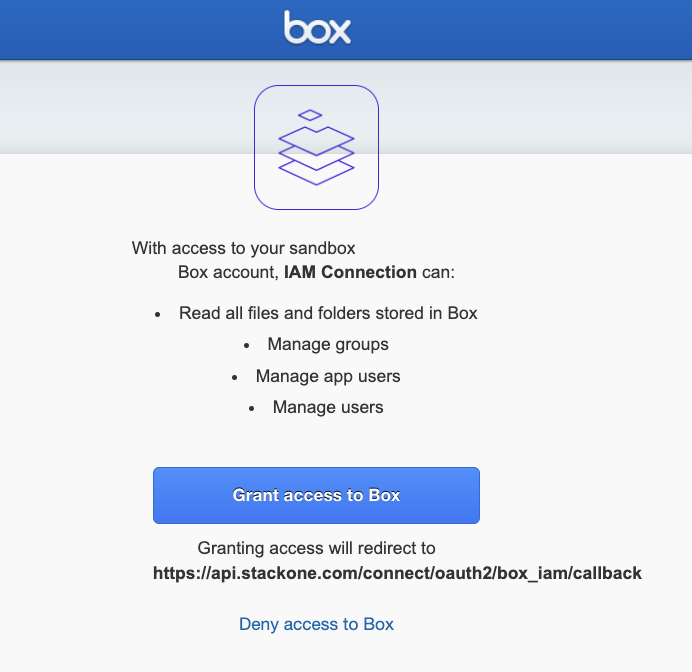

Approve App Connection
A new window will open, prompting you to log in to your Box account if you are not already logged in.
A summary of the App you created will be displayed with its requested permissions.
Click the Grant access to Box button to proceed.
Congratulations, you’re all set! If you face any issues with the steps mentioned above, please contact us by emailing integrations@stackone.com. We’re always here to assist you!
Available data
This integration has the following IAM Resources available from the provider:
- Users
- Roles
