Autodesk - IAM
Follow these steps to connect Autodesk via the StackOne Hub successfully.
Ensure you have Admin privileges for your Autodesk account.
If you’ve been directed to StackOne to integrate with Autodesk, the following steps will help you understand the process and any necessary actions to configure successful integration.
This guidance assumes that you are a Primary Admin or Secondary Admin within Autodesk.
Enable Your Autodesk Developer Account
Gather Details
Following the instructions from the article Autodesk Get Access to a BIM 360 Account, gather the following details:
-
Account Name - located in the top-right when logged in to the B360 Admin
-
Account ID - located in the URL when logged in to the B360 Admin. This will also be used when connecting with StackOne.
Example:
https://admin.b360.autodesk.com/admin/{{Account ID}}/projects
-
Account Admin Email - this can be found on the User Management by User page
Request Activation
Send an email to bim360appsactivations@autodesk.com to request activation of your Developer Account. Include the Account Name, Account ID, and Account Admin Email from the step above.
- This may take a few business days to complete. Autodesk will respond via email once complete.
Create Your Autodesk Application

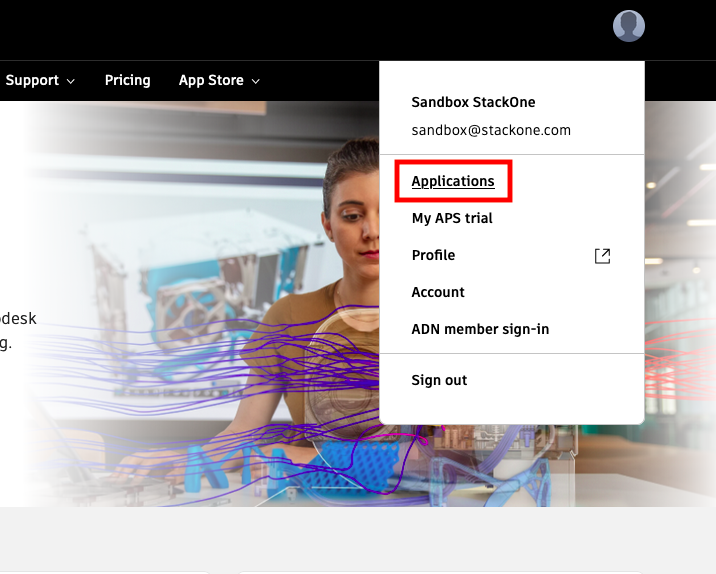

Access Applications
In your Autodesk Platform, click your profile icon in the top-right, then click Applications.
![Applications](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image2.png)

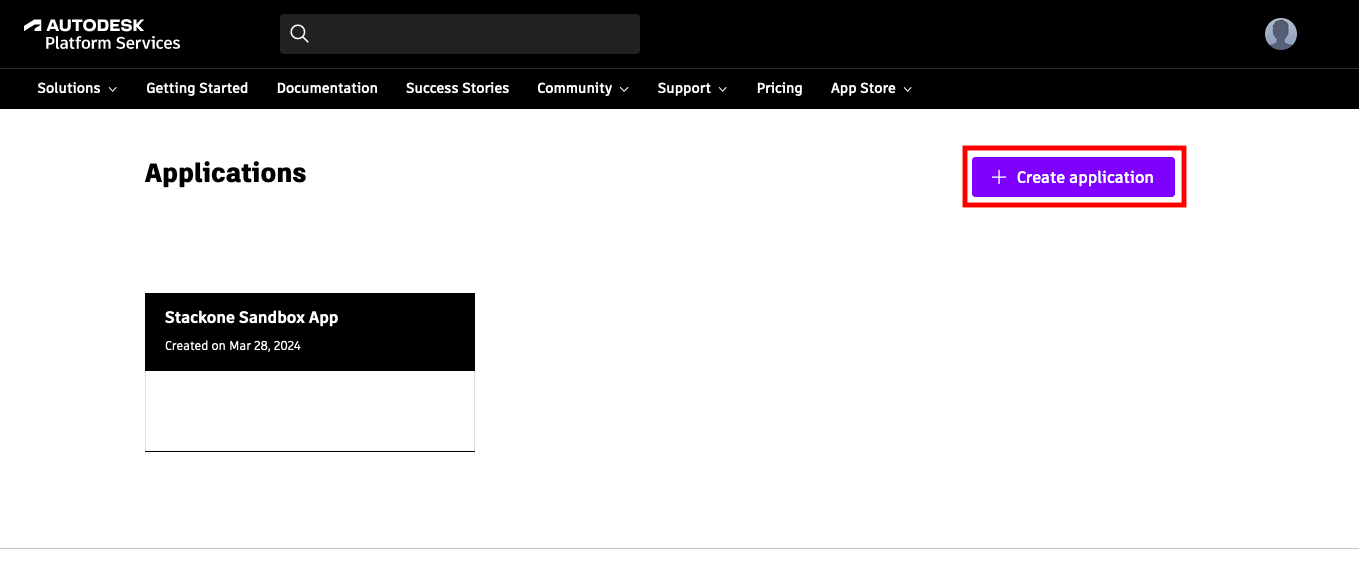

Create Application
Click the + Create Application button.
![Create Application](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image3.png)

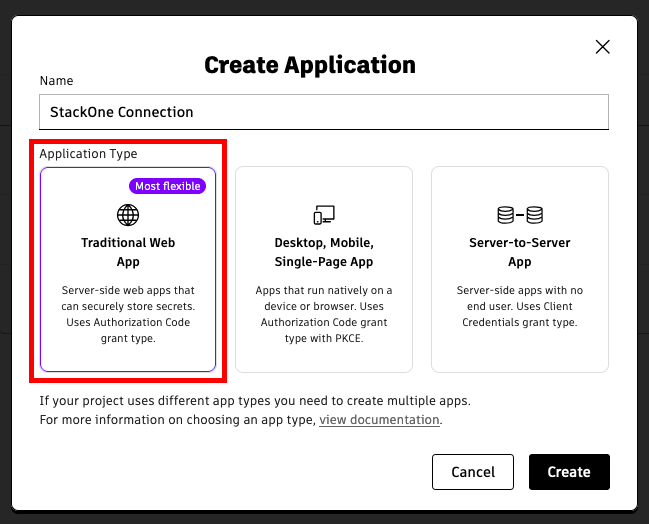

Enter Application Details
Under Create Application, enter a Name for the new app, and select Traditional Web App. Click the Create button to continue.
![Enter Application Details](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image4.png)

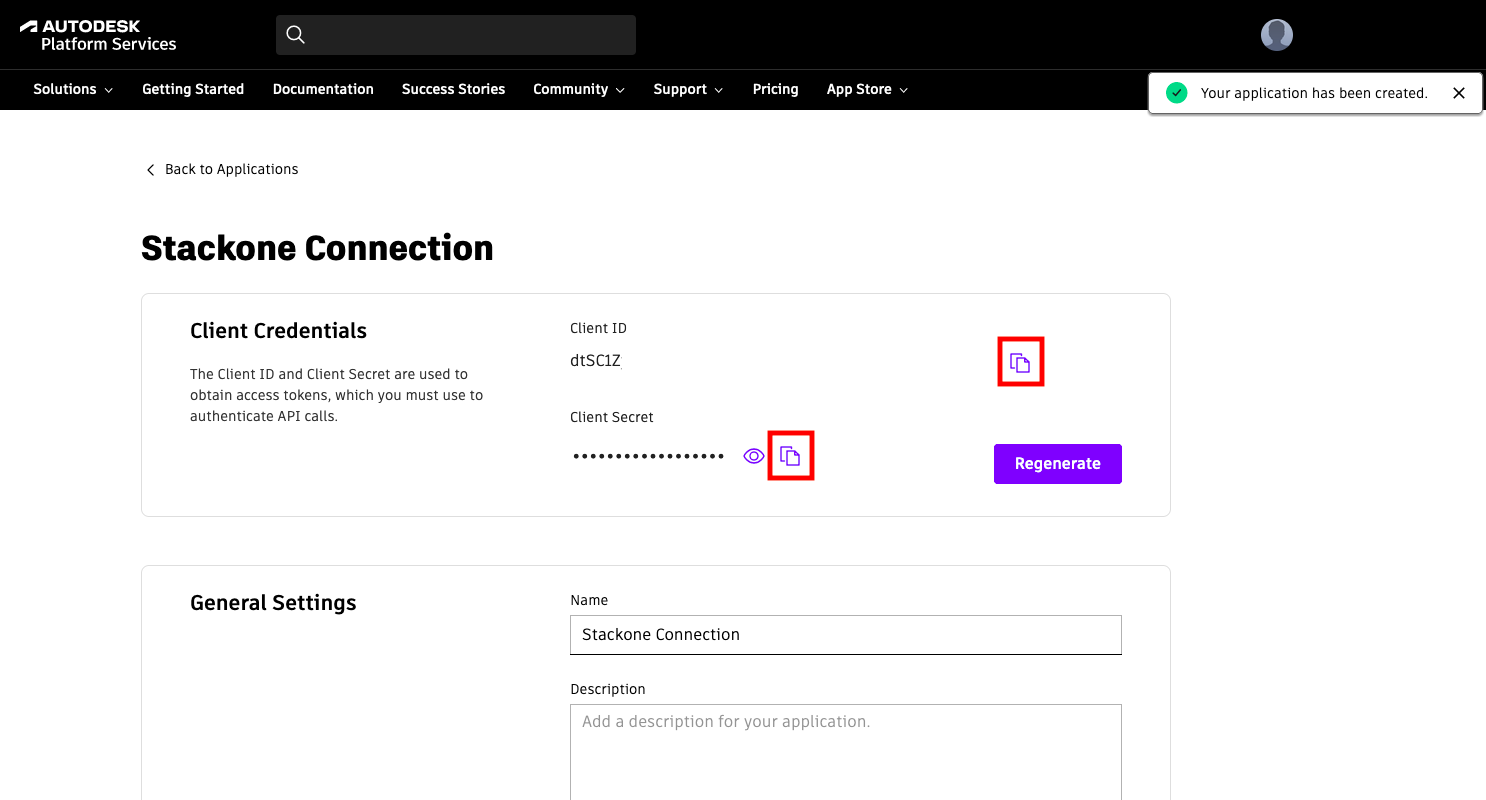

Copy Credentials
Copy your displayed Client ID and Client Secret and store them safely to use in the following steps.
![Copy Credentials](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image5.png)

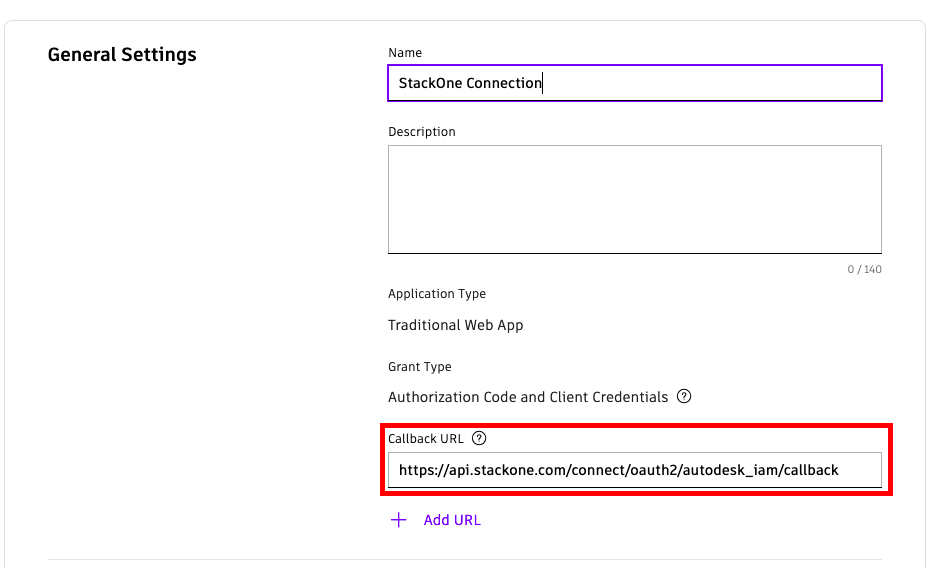

Set Callback URL
Under General Settings, enter the following as the Callback URL: https://api.stackone.com/connect/oauth2/autodesk_iam/callback
![Set Callback URL](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image13.png)

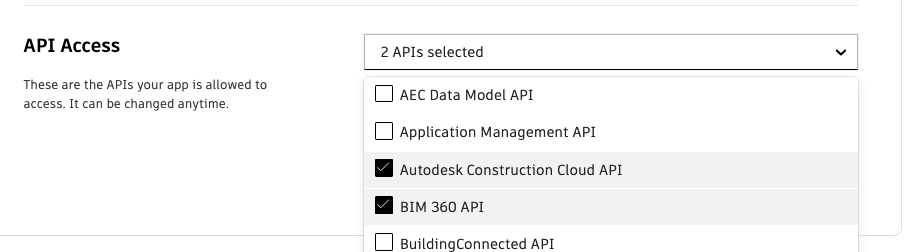

Set API Access
Under API Access, select the following two APIs required for this integration:
- Autodesk Construction Cloud API
- BIM 360 API
![Set API Access](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image14.png)
Save Your New App
Press the Save changes button to complete the creation of your new app.
![Save Your New App](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image15.png)
Enable Your Autodesk App API Access

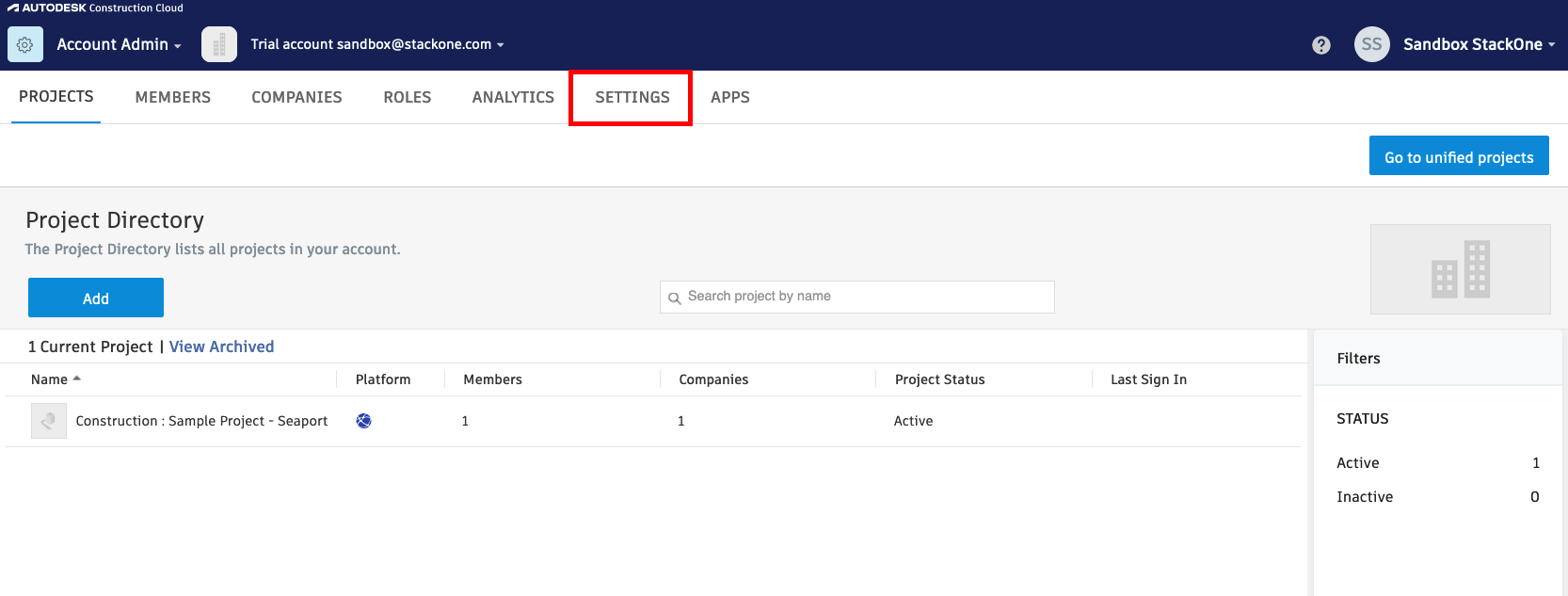

Access Settings
In your B360 Admin, click SETTINGS.
![Access Settings](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image6.png)

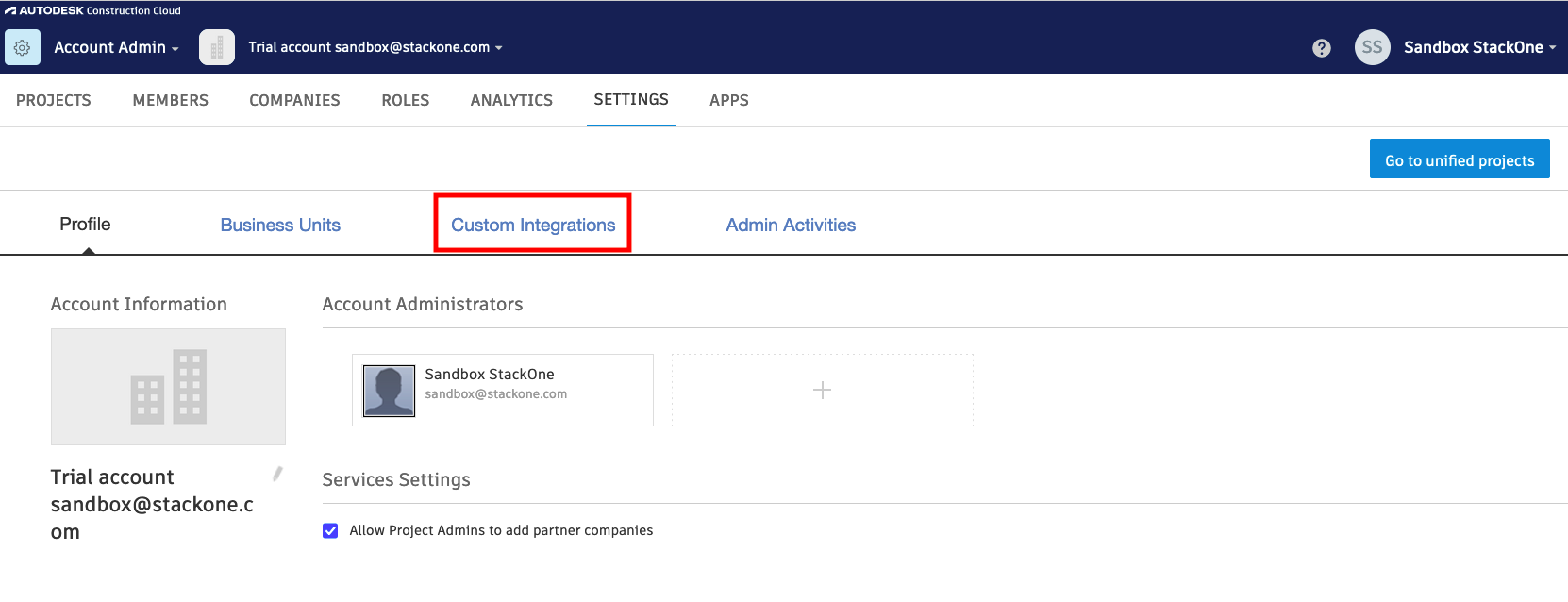

Custom Integrations
Click Custom Integrations.
![Custom Integrations](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image7.png)

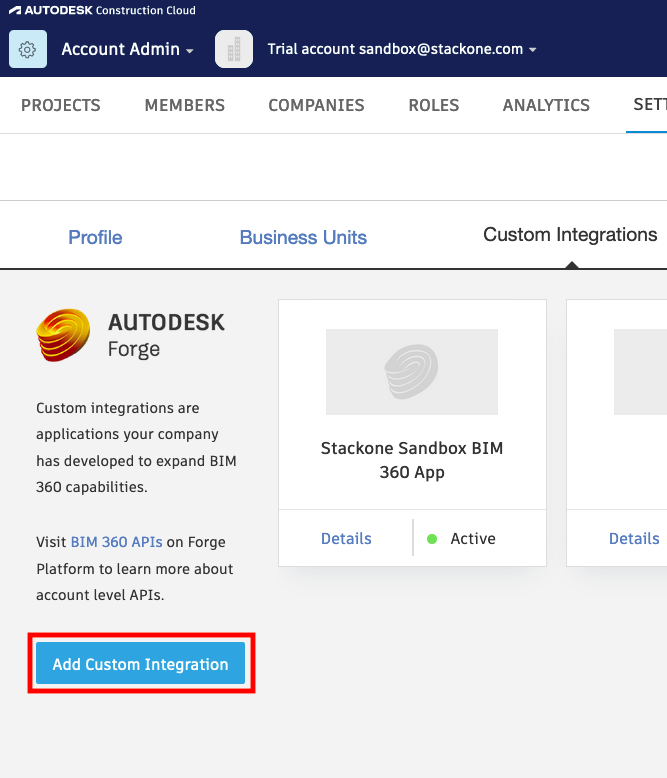

Add Custom Integration
Create a new integration for the StackOne connection by clicking the Add Custom Integration button.
![Add Custom Integration](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image8.png)

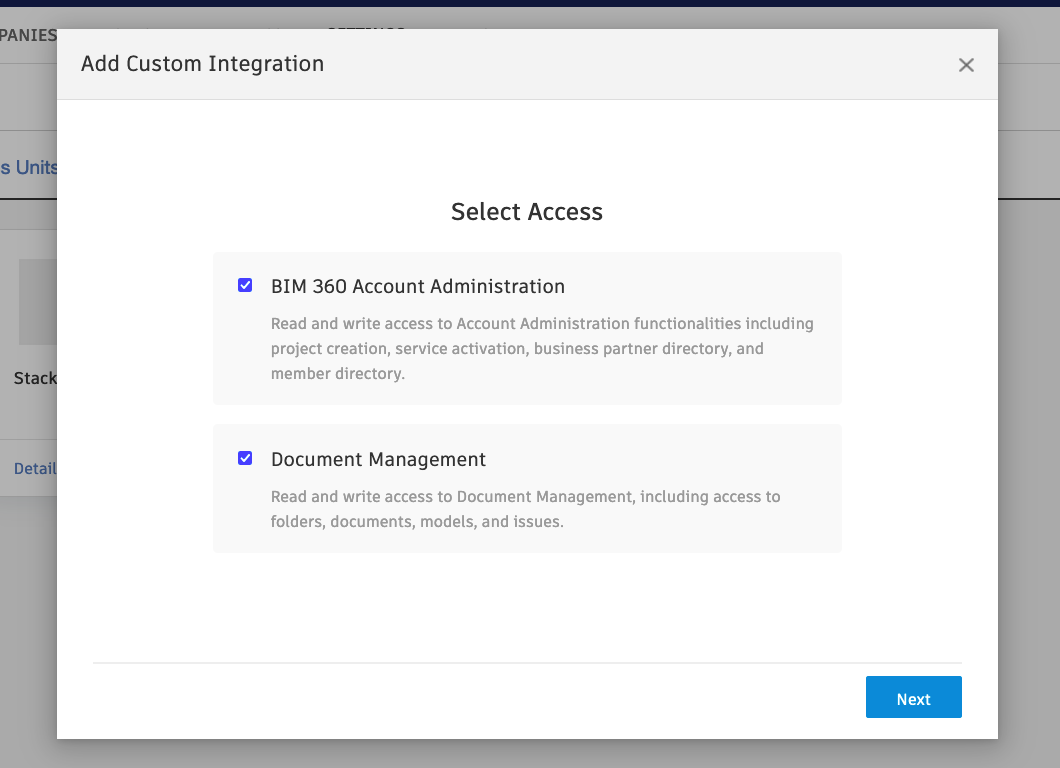

Select Access
Under Select Access, enable BIM 360 Account Administration and Document Management, then click the Next button.
![Select Access](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image9.png)

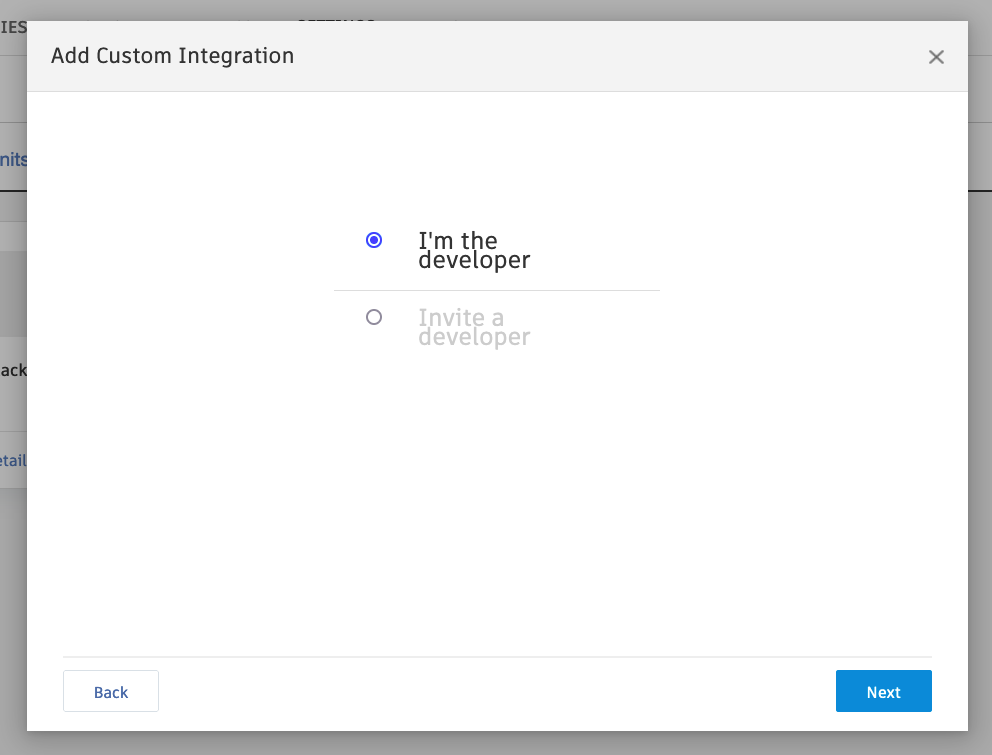

Developer Selection
Select I’m the developer, then click the Next button.
![Developer Selection](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image10.png)

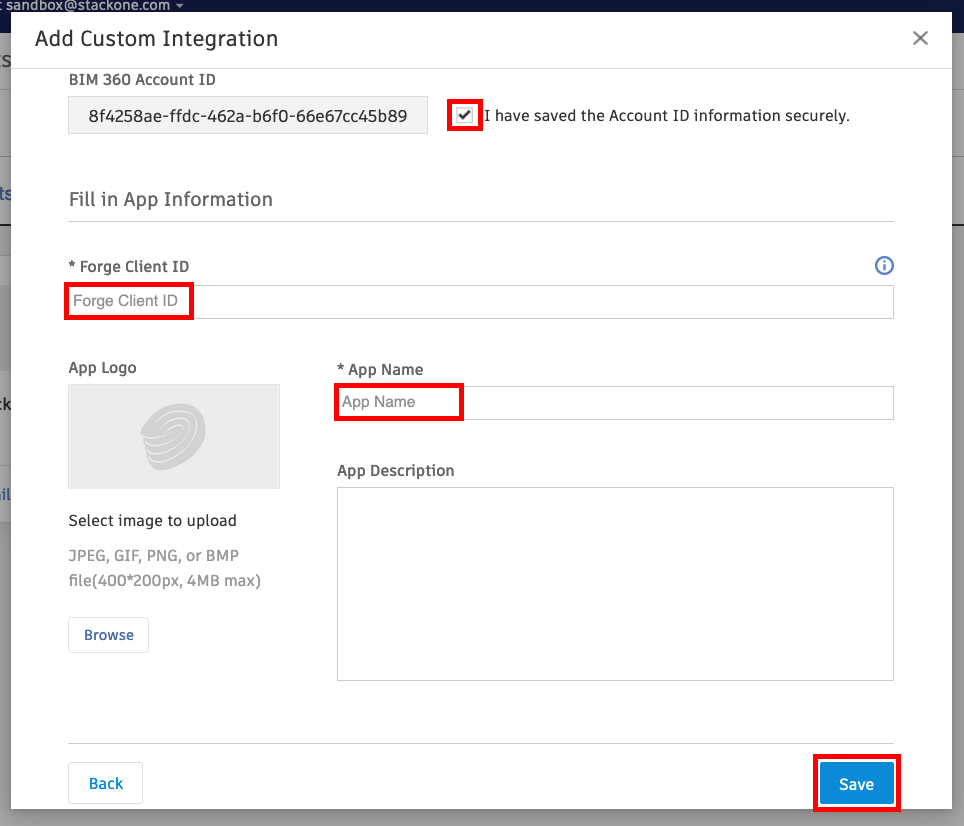

BIM 360 Info
Under BIM 360 info you need:
- Check the box next to “I have saved the Account ID information securely”
- Enter your App’s Client ID from the previous step as the Forge Client ID
- Enter the Name of your App as the App Name
- Click the Save button to complete
![BIM 360 Info](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image11.png)

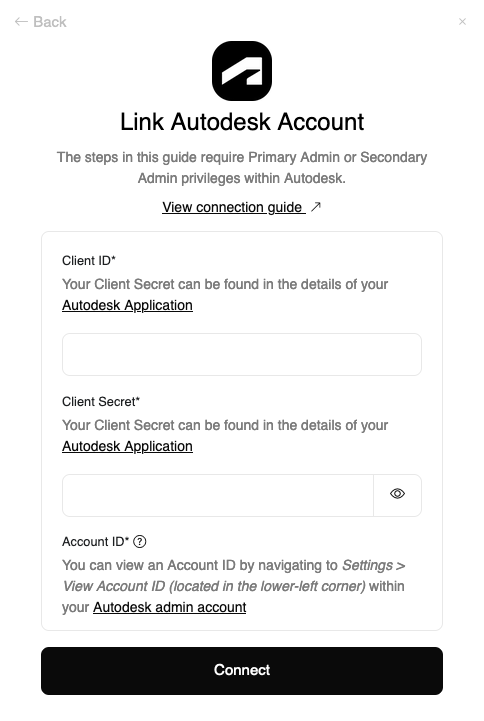

Connecting with StackOne
Enter Credentials
Upon reaching the Link Account page, enter your credentials from the previous steps:
- Client ID
- Client Secret
- Account ID
Proceed by clicking the Connect button.
![Link Account](https://mintlify.s3-us-west-1.amazonaws.com/stackone-hub/images/autodesk/image12.png)
Congratulations, you’re all set! If you face any issues with the steps mentioned above, please contact us by emailing integrations@stackone.com. We’re always here to assist you!
Available data
This integration has the following IAM Resources available from the provider:
- Users
- Roles
- Groups
