Ensure that your Ansible Tower account has Administrator privileges.

If you’ve been directed to StackOne to integrate with Ansible Tower, the following steps will help you understand the process and any necessary actions to configure a successful integration.

​

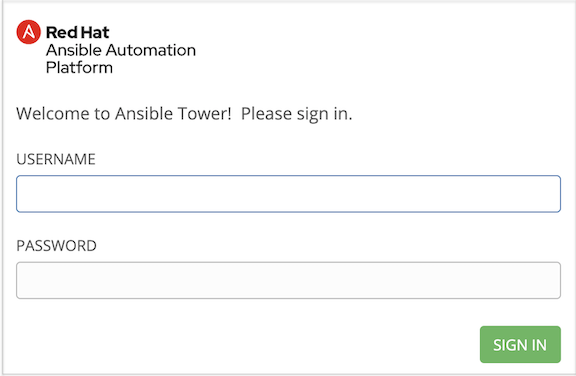

Log in to Ansible Tower

Log in to your Ansible Tower instance, and note your Ansible Tower URL to be used in a later step.

(Example: https://ansible.myapp-exp.com)

​
Create a New OAuth Application

This connection will authenticate on behalf of a registered Application in Ansible.

1

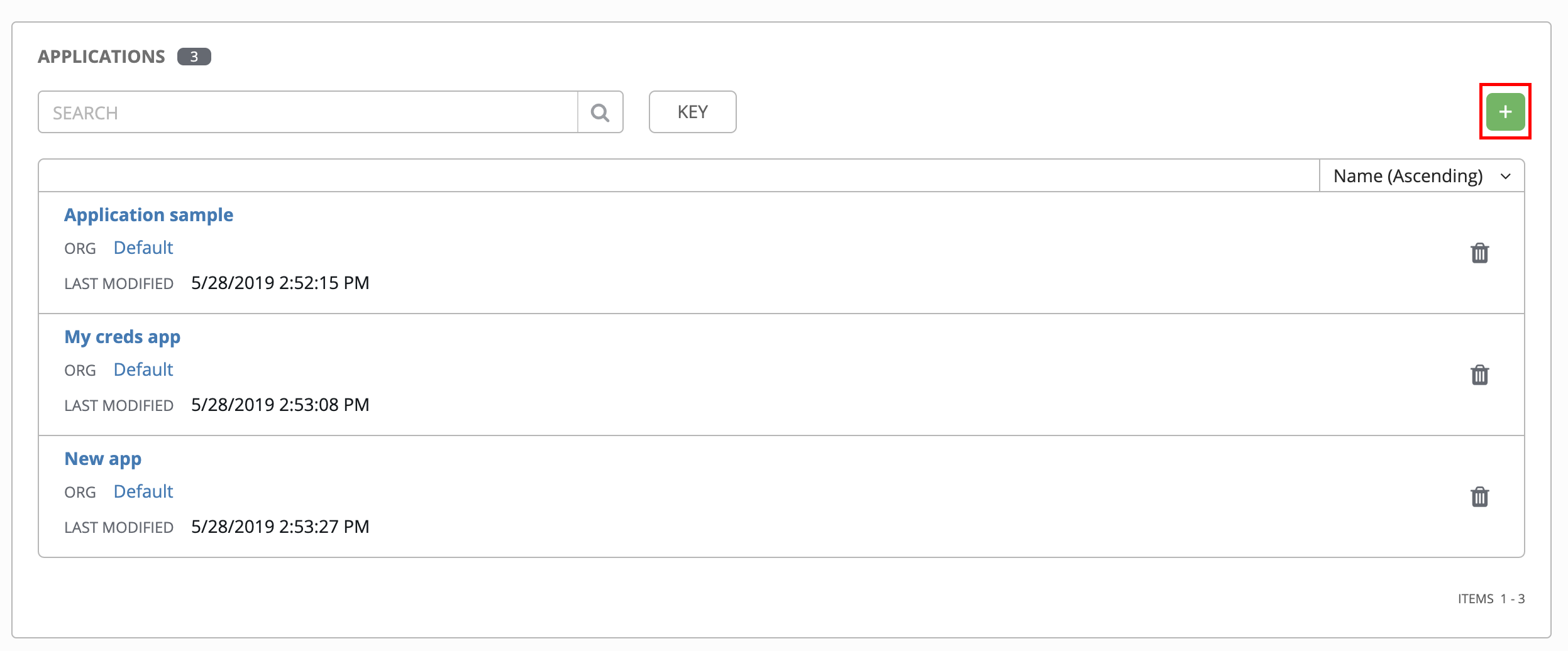

Navigate to Applications

Click Applications in the left navigation bar.

2

Create New Application

Click the + button in the top right to begin creating a new application.

3

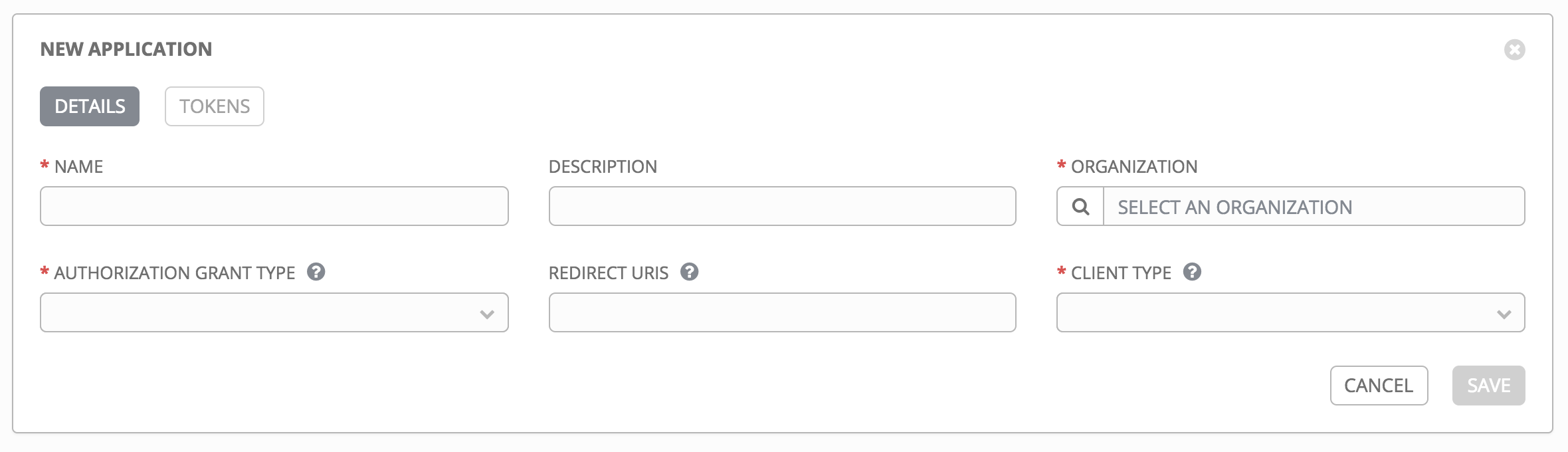

Enter Application Details

Enter the following details in the Create New Application window:

  • Name
  • Description (optional)
  • Organization: select the organization to be associated with this connection
  • Authorization Grant Type: Select Authorization Code
  • Redirect URIS: Enter https://api.stackone.com/connect/oauth2/ansibletower_iam/callback
  • Client Type: Confidential or Public can be selected for this connection

Click the Save button to proceed.

4

Copy Application Credentials

Your new Application Client ID and Client Secret will be displayed. Copy these and store them securely to be used in a later step.

​
Connecting with StackOne

1

Enter Credentials

Upon reaching the Link Account page, enter the credentials from the previous steps:

  • Client ID
  • Client Secret
  • Ansible Tower URL

Proceed by clicking the Connect button.

2

Authorize Application Access

Depending on your Ansible Tower instance configuration, a window may appear with a prompt to log in to Ansible Tower and authorize this new application.

Log in again and click the Authorize button to proceed.


Congratulations, you’re all set! If you face any issues with the steps mentioned above, please contact us by emailing integrations@stackone.com. We’re always here to assist you!

​
Available data

This integration has the following IAM Resources available from the provider:

  • Users
  • Roles
  • Groups
